P51W Heater Switch Wiring

P51W Heater Switch Wiring - TB240901

Issue Date: Feb. 10, 2025


Scope: PH51W-EA7, PH51W-EB7 Heater Kits


Complaint: New style wiring harness has different colour wires that don’t match switch wires.

Previous versions of manuals did not reflect the current wiring.

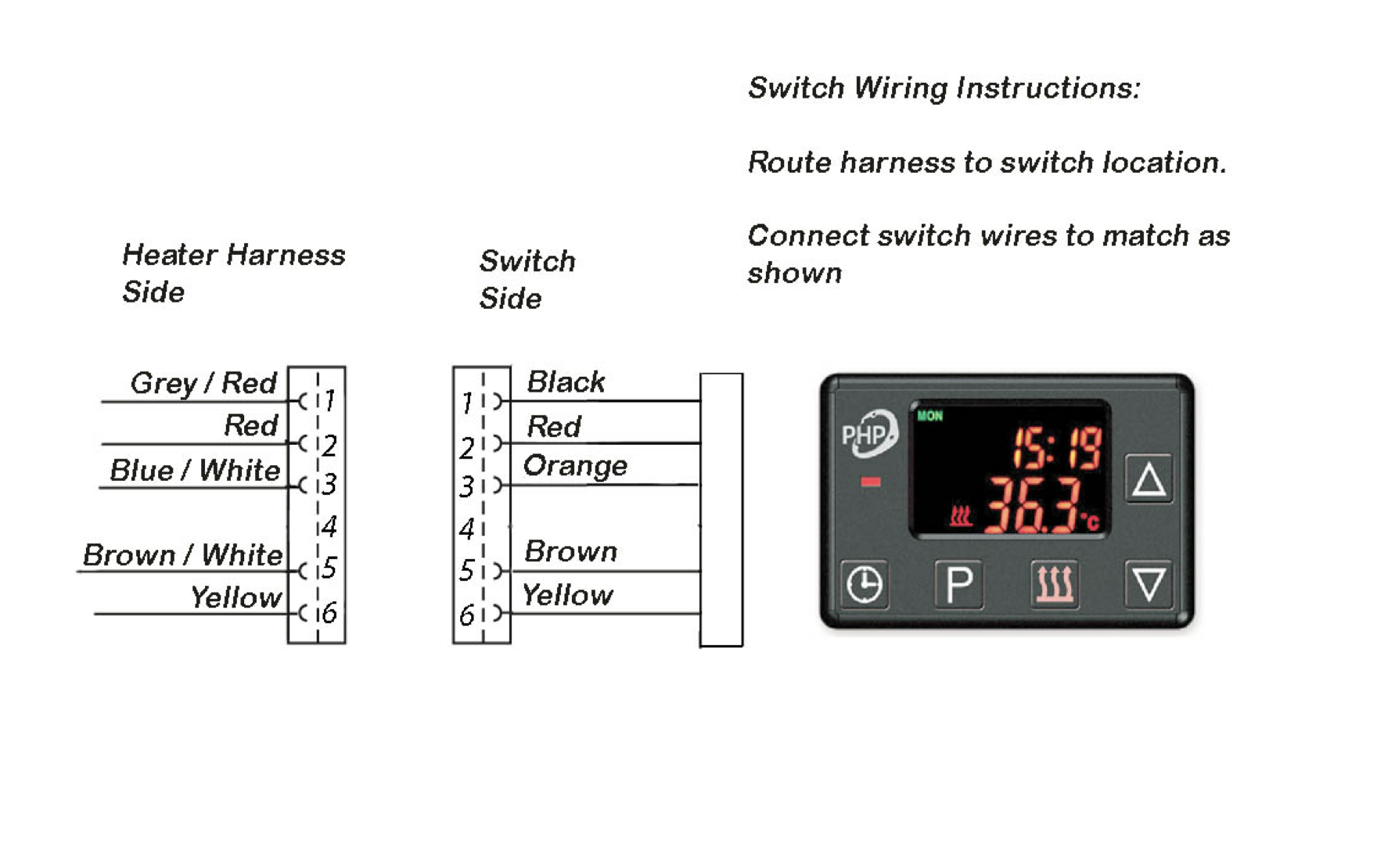

Resolution: To improve the quality, the main wiring harness for the P51W heaters are now made in Canada. To facilitate production, some wire colours needed to be changed. For this reason, they no longer line up colour to colour when connecting the switch. Below are the proper wiring connections required.

Manuals have now been updated to reflect this change.
